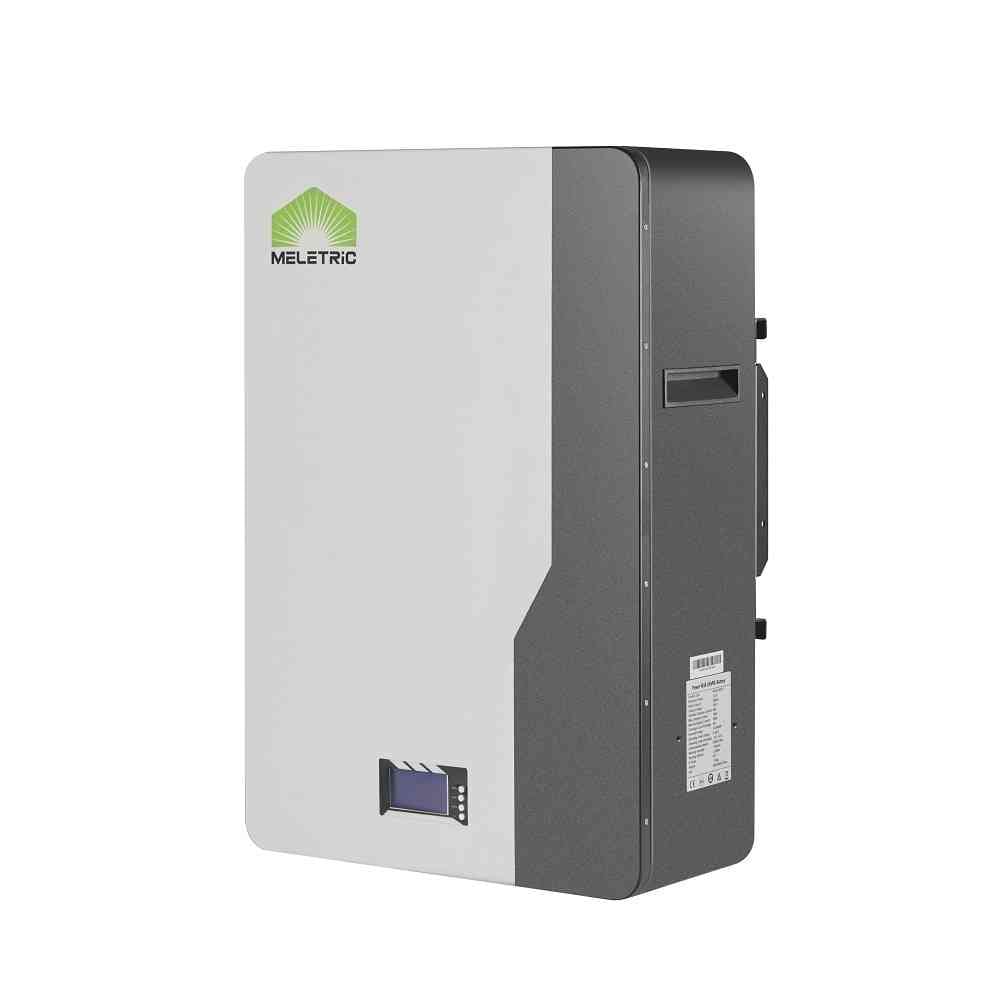

51.2V 200AH Powerwall Battery
51.2V 200AH Powerwall Battery
- Product Model: PWB16S200BL-X
- Nominal Voltage: 51.2V
- Rated Capacity: 10.24KWh
- Energy Capacity: 200Ah
- End-of-discharge Voltage: 42V
- Max.Charge Current: 100A
- Max.Discharge Current: 100A
- Communication : RS485/CAN (RS232/RS485/CAN/Bluetooth optional)
- Temperature range for use：-10°~65°C
- Size: 675*445*206mm
- Weight: 89kg (about)
- Cycle Life：≥6000 times@80%DOD, 25°C
Description
Description
PWB16S200BL-X a lightweight and convenient option for household energy storage, powerwall energy storage systems boast a compact size and an integrated body design. With plug-and-play functionality, they are easy to install and offer a space-saving energy storage solution for homeowners.
Nice appearance power wall with black and white color and LCD monitor, wall mount battery in your home, not only as an power system, also looks like an modern decorate. Modern and reliable energy storage system in your house!
| Product Model: | PWB15S100BL-X | PWB16S100BL-X | PWB16S200BL-X |
| Cell series connection method | 15S | 16S | 16S |
| Rated Capacity: | 4.8KWH | 5.12KWH | 10.24KWH |
| Nominal Voltage: | 48V | 51.2V | 51.2V |
| Energy Capacity: | 100Ah | 100AH | 200AH |
| End-of-discharge Voltage: | 40 V | 42V | 42V |
| Max.Charge Current: | 100A | 100A | 100A |
| Max.Discharge Current: | 100A | 100A | 100A |
| Communication : | RS485/CAN (RS232/Bluetooth optional) | RS485/CAN (RS232/Bluetooth optional) | RS485/CAN (RS232/Bluetooth optional) |
| Temperature range for use： | -10°~65°C | -10°~65°C | -10°~65°C |
| Size: | 560*445*170mm | 560*445*170mm | 675*445*206mm |
| Weight: | 43kg | 45KG | 89KG |
| Cycle Life： | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C |
