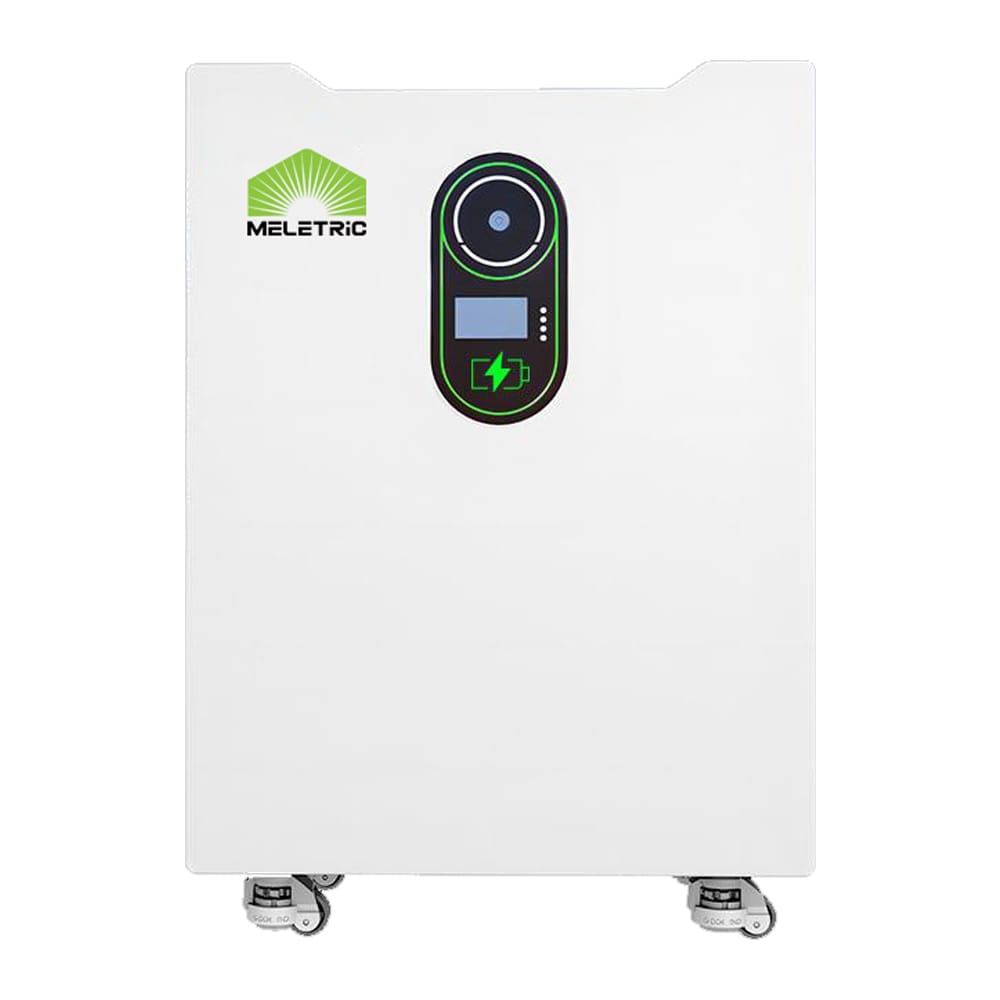

51.2V 14.3KWH Floor Roller Battery
51.2V 14.3KWH Floor Roller Battery
- Product Model: FS16S280BL
- Nominal Voltage: 51.2V
- Rated Capacity: 14.3KWh
- End-of-discharge Voltage: 42V
- Max.Charge Current: 100A
- Max.Discharge Current: 100A
- Communication : RS232/RS485/CAN optional
- Charge Temperature: 0~60℃
- Discharge Temperature: -10~65℃
- Size(L*W*H): 580*750*279mm
- Weight: 113kg (about)
- Cycle Life：≥6000 times@80%DOD, 25°C
Description
Description
FS16S280BL The LiFePO4 Floor Roller Model Lithium-ion Battery is a cutting-edge solar wall battery designed for easy wall mounting. It features a built-in Battery Management System, an LCD screen, and Grade A cells, offering over 6,000 cycles of impressive battery life. This smart energy storage solution allows homeowners to store power from their solar systems or the grid, serving as a reliable emergency backup.
Maintenance-free and compatible with 90% of inverters, the LiFePO4 Floor Roller Model integrates seamlessly with solar systems or operates independently, delivering consistent power day and night. With excellent safety features, it empowers homeowners to reduce grid reliance and lower energy bills effectively.
| Product Model | FS16S100BL | FS16S200BL | FS16S280BL |
| Cell series connection method | 16S | 16S | 16S |
| Rated Capacity | 5KWH | 10KWH | 14.3KWH |
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| End-of-discharge Voltage | 42V | 42V | 42V |
| Max. Charge Current | 100A | 100A | 100A |
| Max.Discharge Current | 100A | 100A | 100A |
| Communication | RS232/RS485/CAN | RS232/RS485/CAN | RS232/RS485/CAN |
| Size(L*W*H) | 580×450×183mm | 580×750×183mm | 580×750×279mm |
| Weight | 50kg | 94kg | 113kg |
| Cycle Life | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C |
