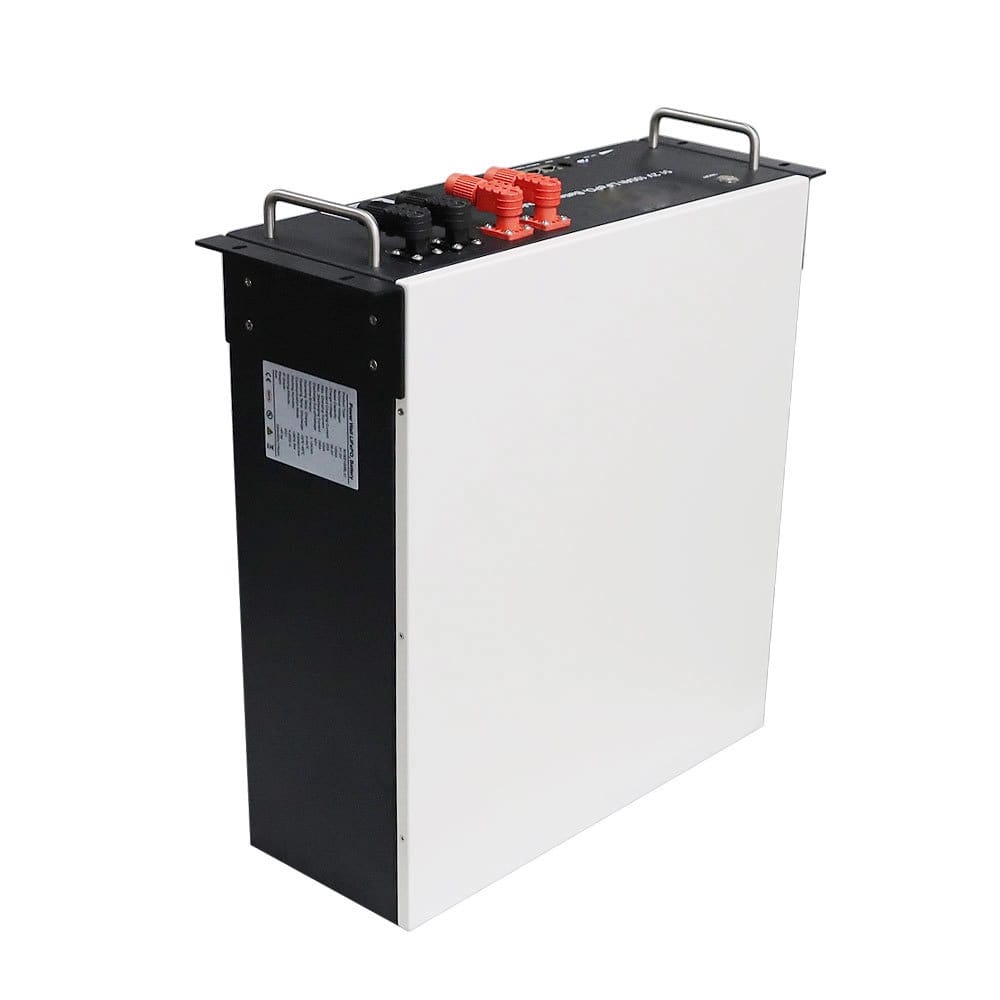

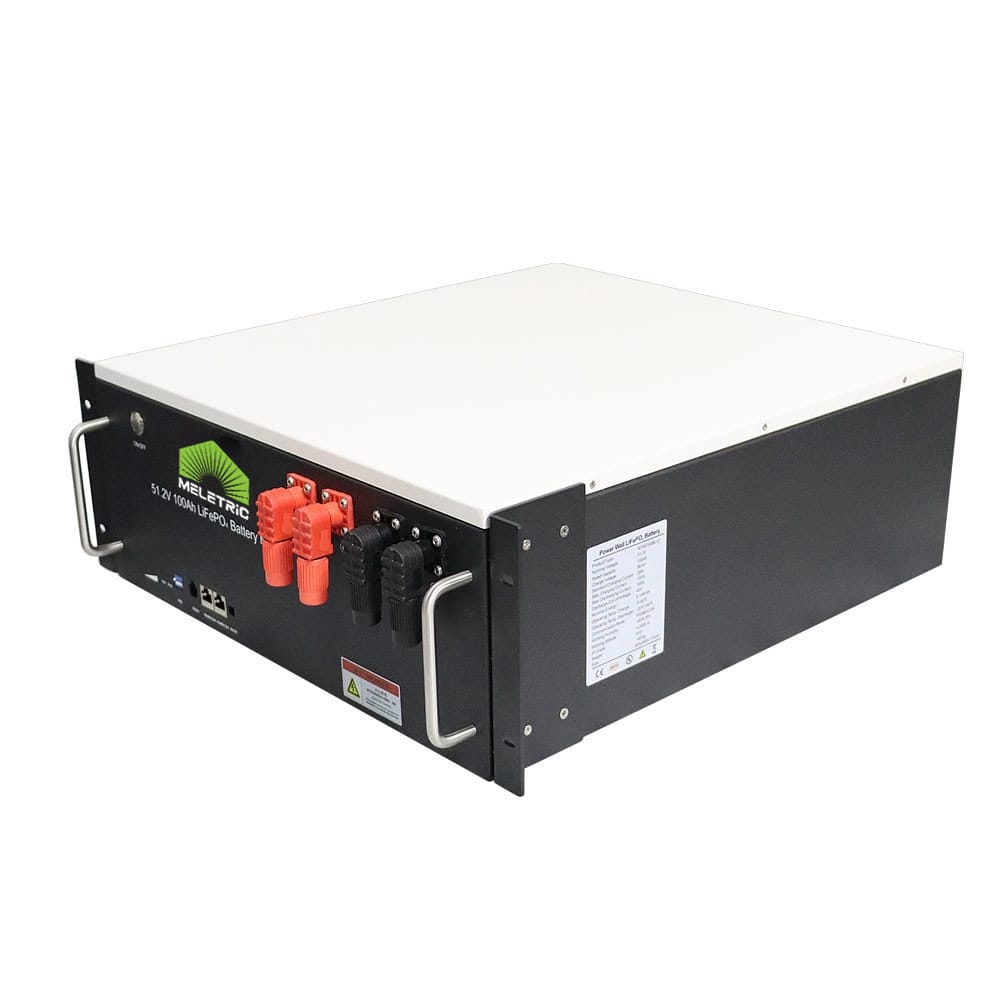

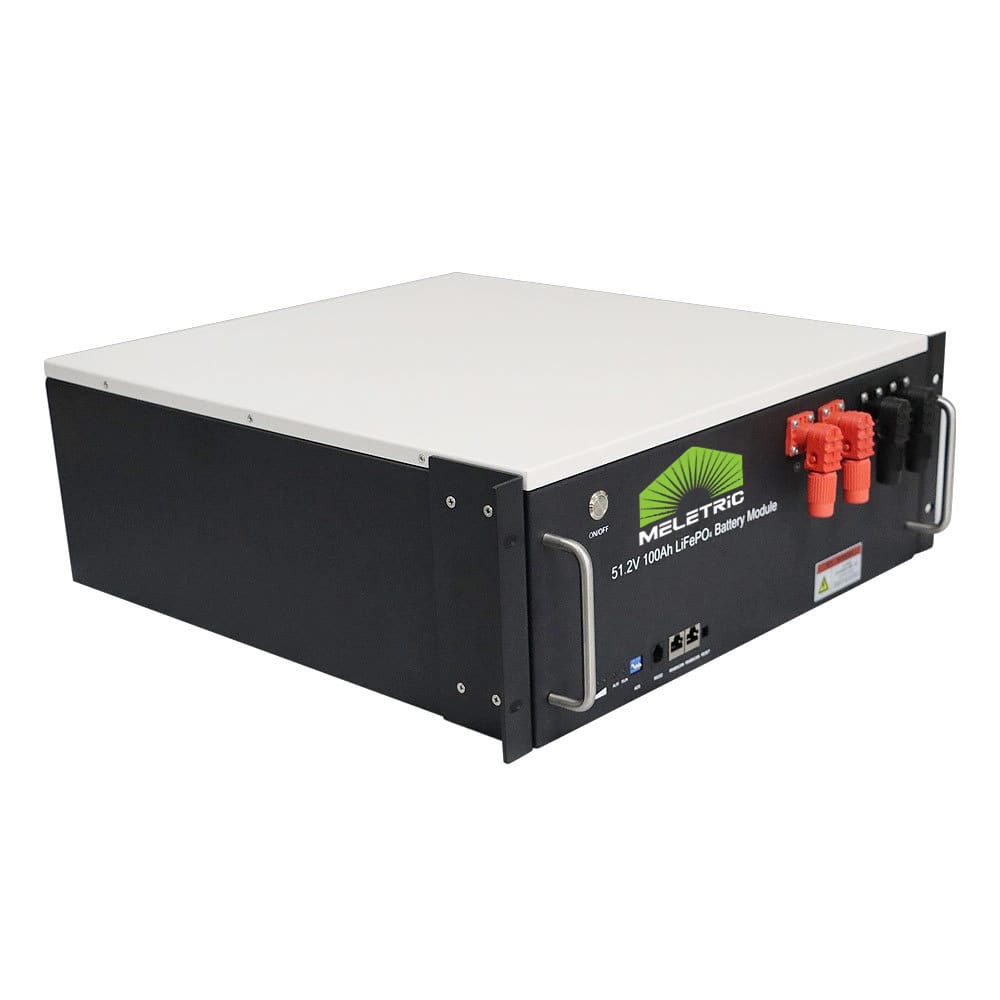

The Rack-type Lithium-ion battery utilizes Grade A LiFePO4 cells for superior performance, making it ideal for solar energy storage systems that require reliable and efficient energy storage.
With a cycle life exceeding 6,000 cycles and high energy density, this eco-friendly battery provides a durable and sustainable energy solution. Additionally, it supports fast charging and discharging at high currents, catering to demanding energy needs.
| Product Model: | CSE15S100BL-B | CSE16S100BL-B | CSE16S200BL-B | CSE16S280BL-B |
| Cell series connection method | 15S | 16S | 16S | 16S |
| Nominal Voltage: | 48V | 51.2V | 51.2V | 51.2V |
| Rated Capacity: | 4.8KWH | 5.0KWH | 10.24KWH | 14.3KWH |
| End-of-charge Voltage: | 54.7V | 58.2V | 58.2V | 58.2V |
| End-of-discharge Voltage: | 40V | 42V | 42V | 42V |
| Max.Charge Current: | 100A | 100A | 100A | 100A |
| Max.Discharge Current: | 100A | 100A | 100A | 100A |
| Communication : | RS485/CAN (RS232/Bluetooth optional) | RS485/CAN (RS232/Bluetooth optional) | RS485/CAN (RS232/Bluetooth optional) | RS485/CAN (RS232/Bluetooth optional) |
| Temperature range for use： | -10°~65°C | -10°~65°C | -10°~65°C | -10°~65°C |
| Size: | 515*493*175mm | 515*493*175mm | 630*490*255mm | 768*450*275mm |
| Weight: | 45KG | 48KG | 103KG | 130KG |
| Cycle Life： | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C | ≥6000 times@80%DOD, 25°C |
