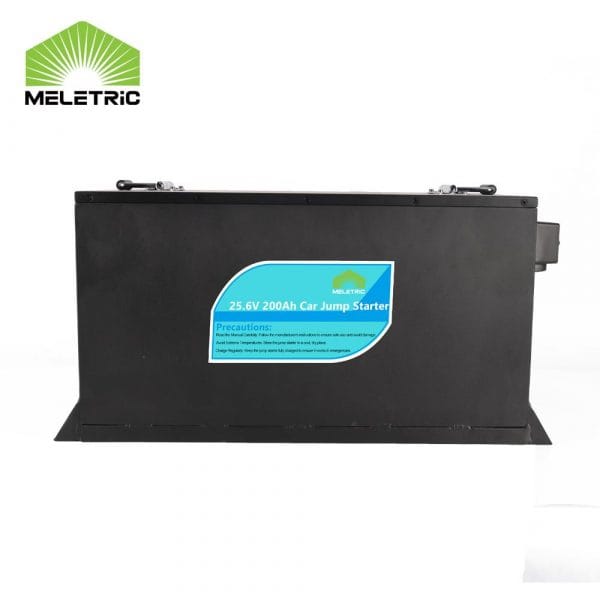

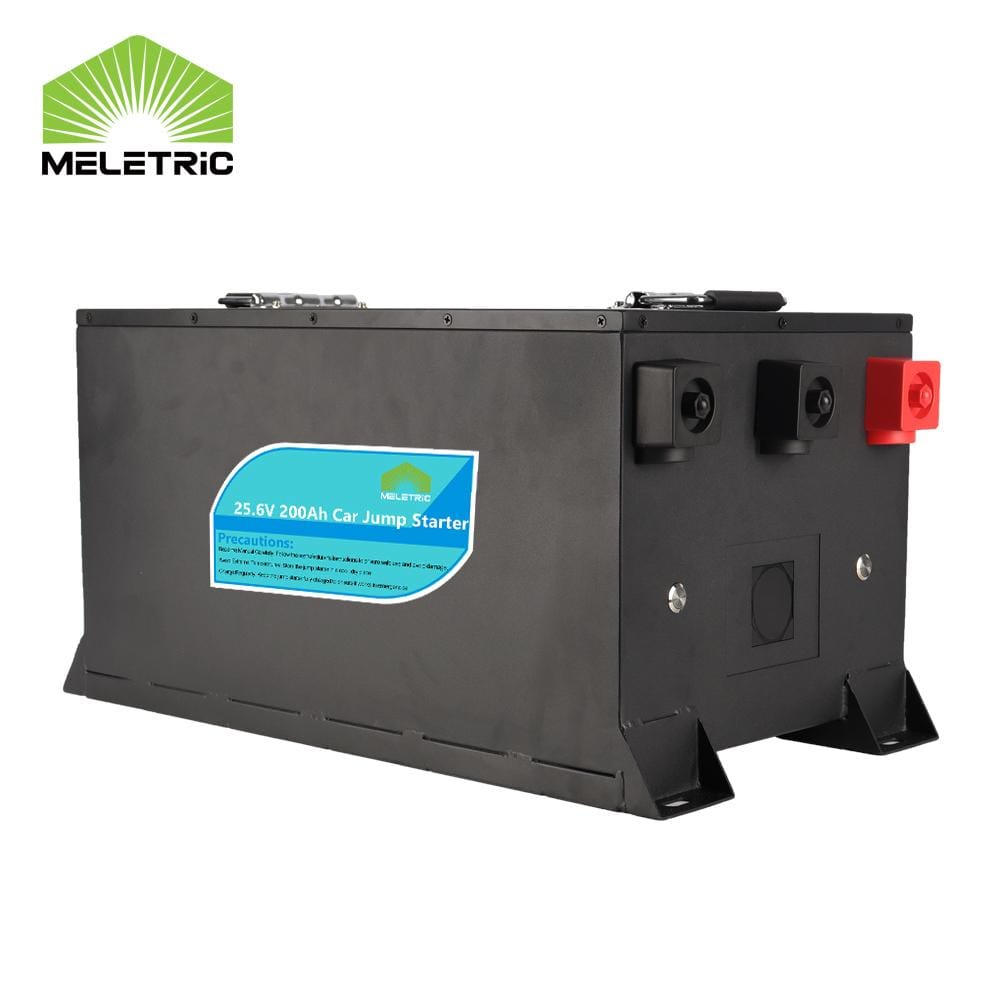

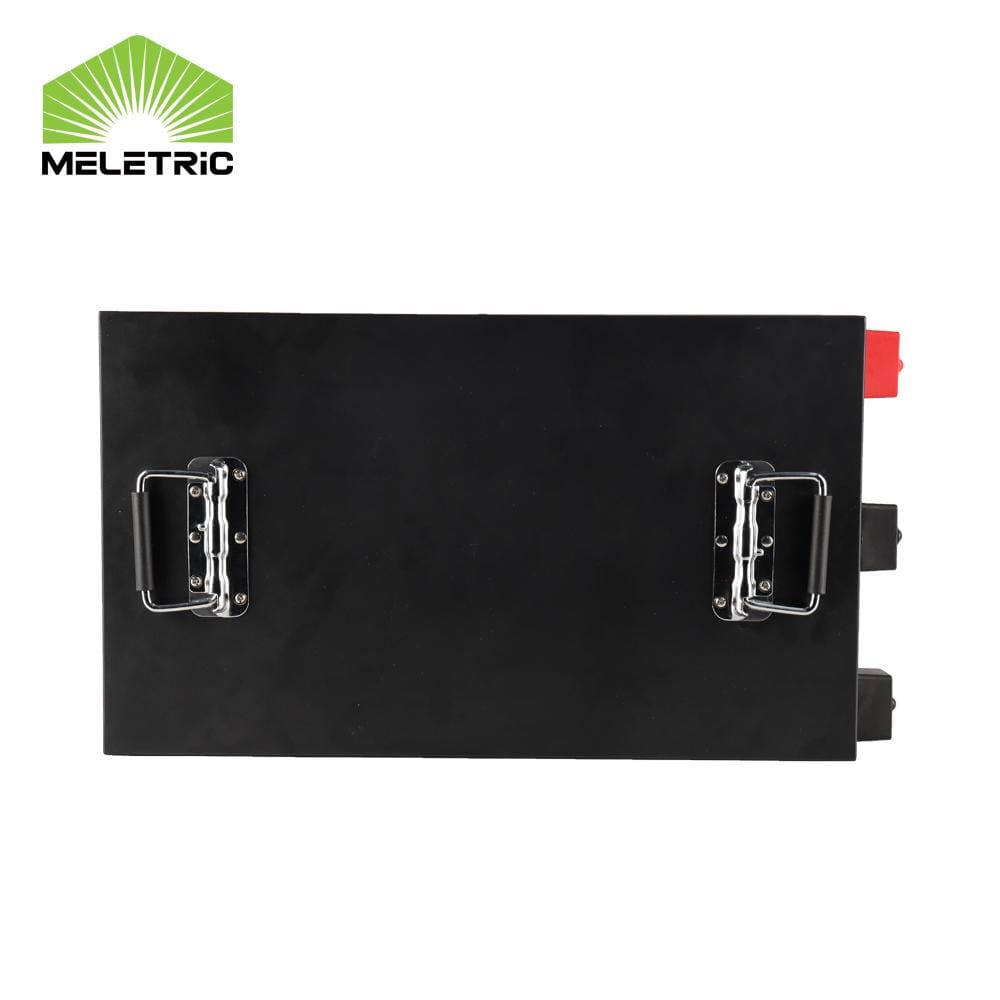

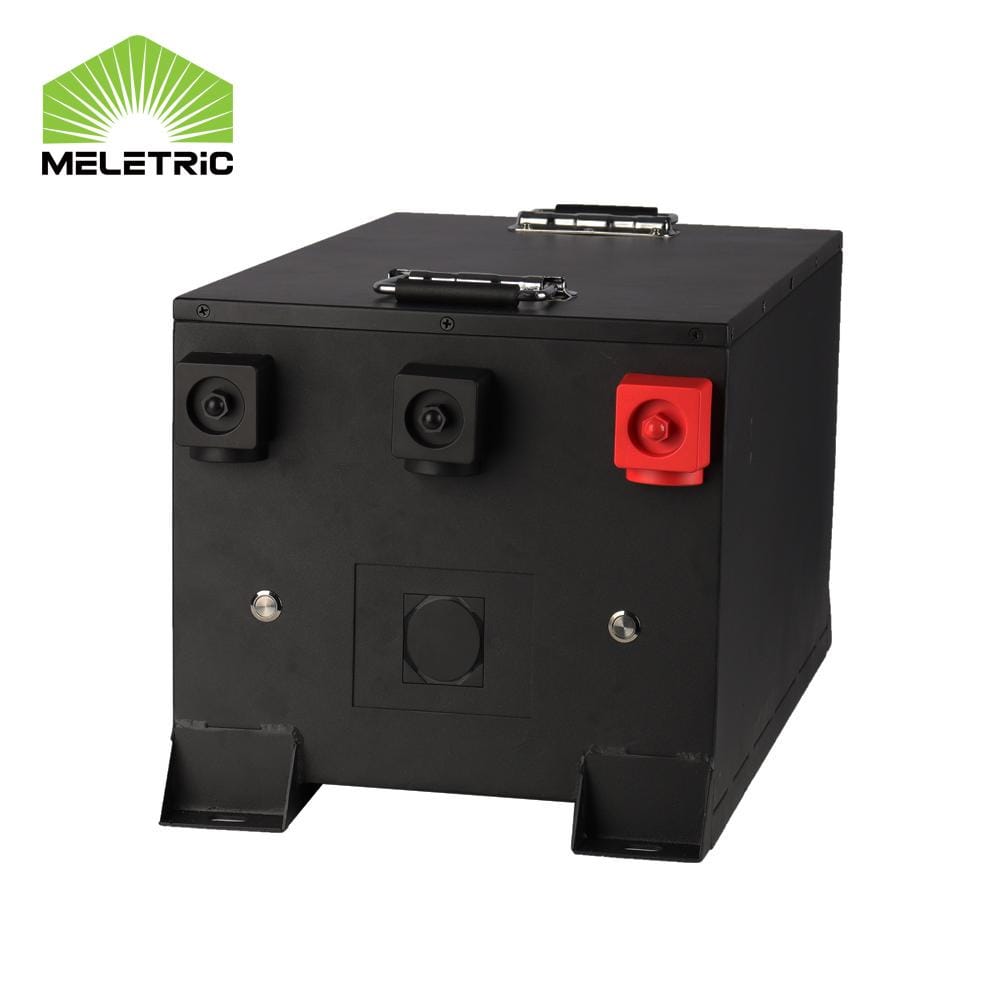

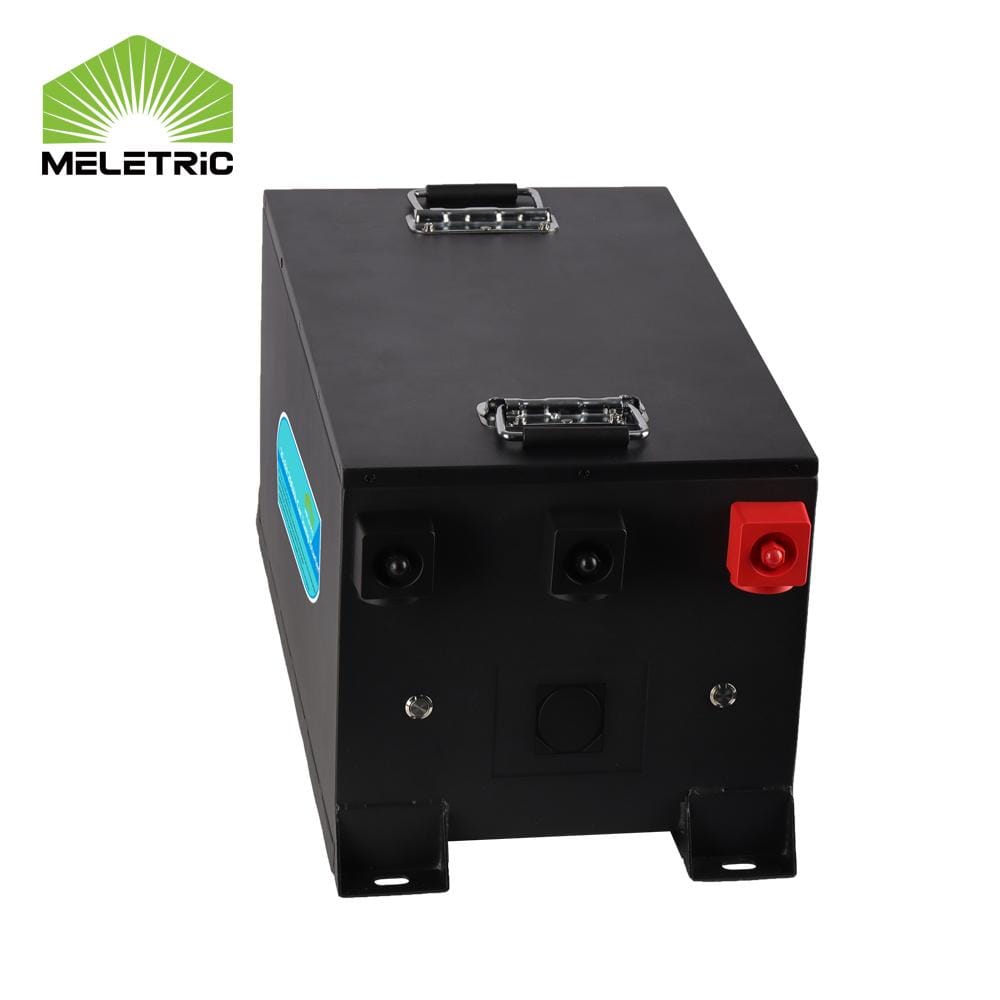

25.6V 200Ah Parking Air Conditioning Power Battery
25.6V 200Ah Parking Air Conditioning Power Battery
- Nominal Energy: 5.27KWh
- Nominal Voltage: 25.6V
- Energy Capacity: 200Ah
- Communication: RS485 / GPS / Bluetooth
- Cycle Life: ≥6000 cycles
- Operating Temperature: Discharge: -20~60℃, Charge: 0~60℃
- Size(L*W*H) ：588 * 306 * 307mm
- Weight ：≈43.0kg (excluding case),
≈52.0kg (including case)
Description
Description
This high-capacity, 25.6V 200Ah battery is designed for reliable power in parking air conditioning systems. Featuring a total energy of 5.27kWh, it supports both constant current and constant voltage charging modes. The battery allows for standard charging at 40A or rapid charging at 100A, with robust discharge capabilities up to 200A continuously and a peak of 2000A.
It offers a long cycle life of over 6000 cycles and integrates communication protocols including RS485, GPS, and Bluetooth, making it a dependable, high-performance solution for mobile cooling needs.
| Brand | Meletric | Product Name | Parking Air Conditioning Power Supply |
| Nominal Voltage | 25.6V | Charging Method | Constant Current/Constant Voltage (CC/CV, adjusted by voltage) |
| Nominal Capacity | 206Ah | Charging Current | Standard Charge: 40A (≈0.2C) Fast Charge: 100A (0.5C) |
| Minimum Capacity | 200Ah | Charging Time | Standard Charge: 6.0 hours Fast Charge: 2.5 hours |
| Rated Energy | 5.27kWh | Discharge Current | Maximum Continuous Discharge: 200A (1.0C) Maximum Pulse Discharge Current: 2000A (10C) for 500ms + 100A |
| Shipping Voltage | ≥25.6V | Operating Temperature | Discharge: -20~60℃, Charge: 0~60℃ |
| Charging Voltage | 29.2V | Communication Protocols | RS485 / GPS / Bluetooth |
| Discharge Cut-off Voltage | 20V (Standard Battery Discharge) | Battery Pack Weight | ≈43.0kg (excluding case), ≈52.0kg (including case) |
| Internal Resistance | ≤100.0mΩ | Cycle Life | ≥6000 cycles |
| Configuration (Series/Parallel) | 8S1P | Dimensions(L*W*H) | 588 * 306 * 307mm |
